V7 G intermittent low vacuum

The V7 g intermittent low vacuum portable suction units have been specifically developed for gastric drainage, wound drainage and therapies requiring low flow conditions.

Description
ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade membrane type suction pump. Oil-free and maintenance-free.
Digital vacuum display of 0-20 kPa (0-150 mmHg).
Precise and stable vacuum control knob.
Intermittence programer control knob: it allows to select between continuous aspiration and three different programmed timings: 10 sec ON – 5 sec OFF / 20 sec ON –10 sec OFF / 40 sec ON – 20 sec OFF.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.

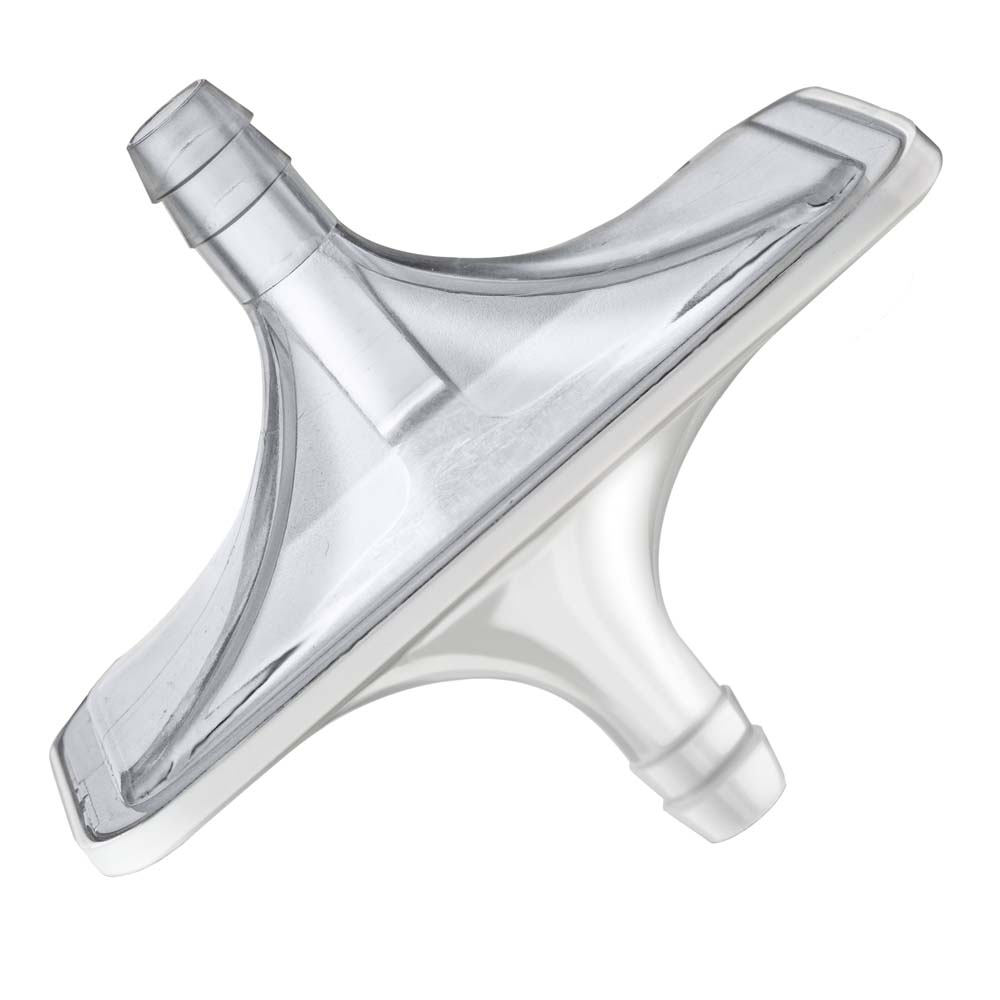

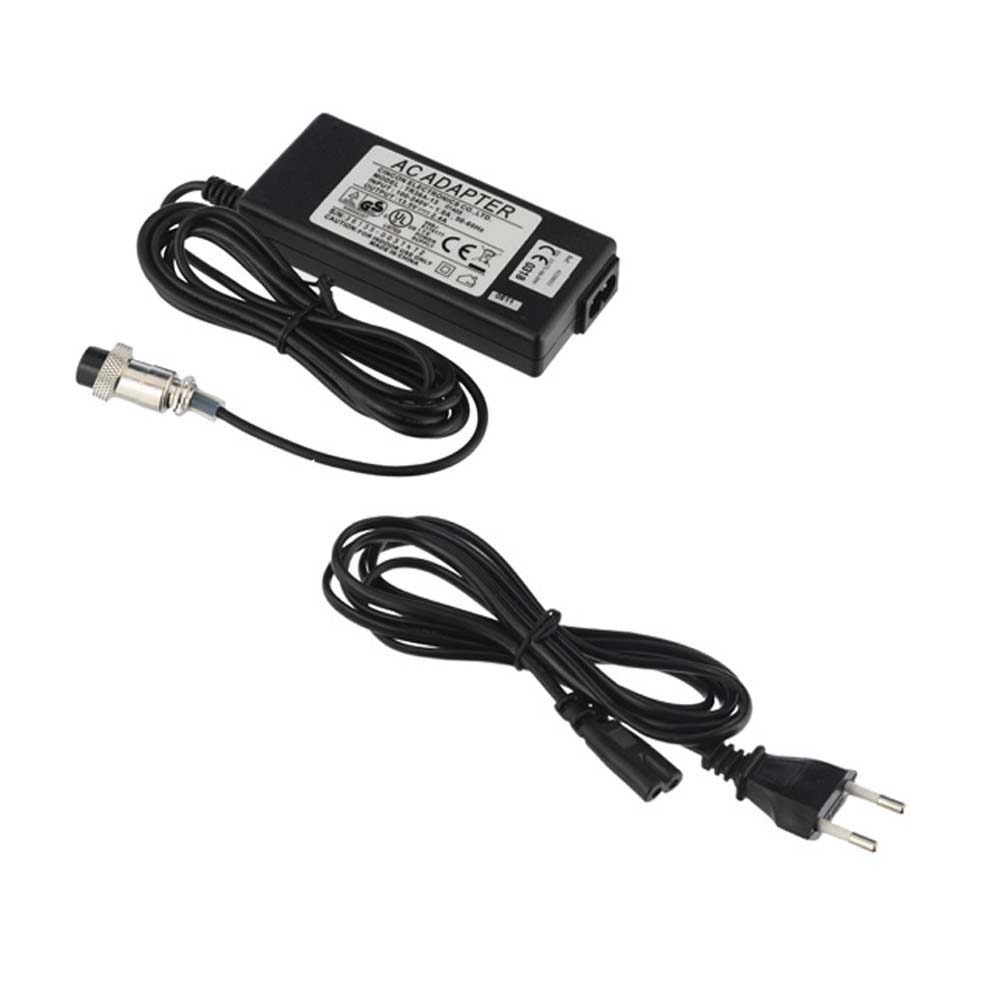

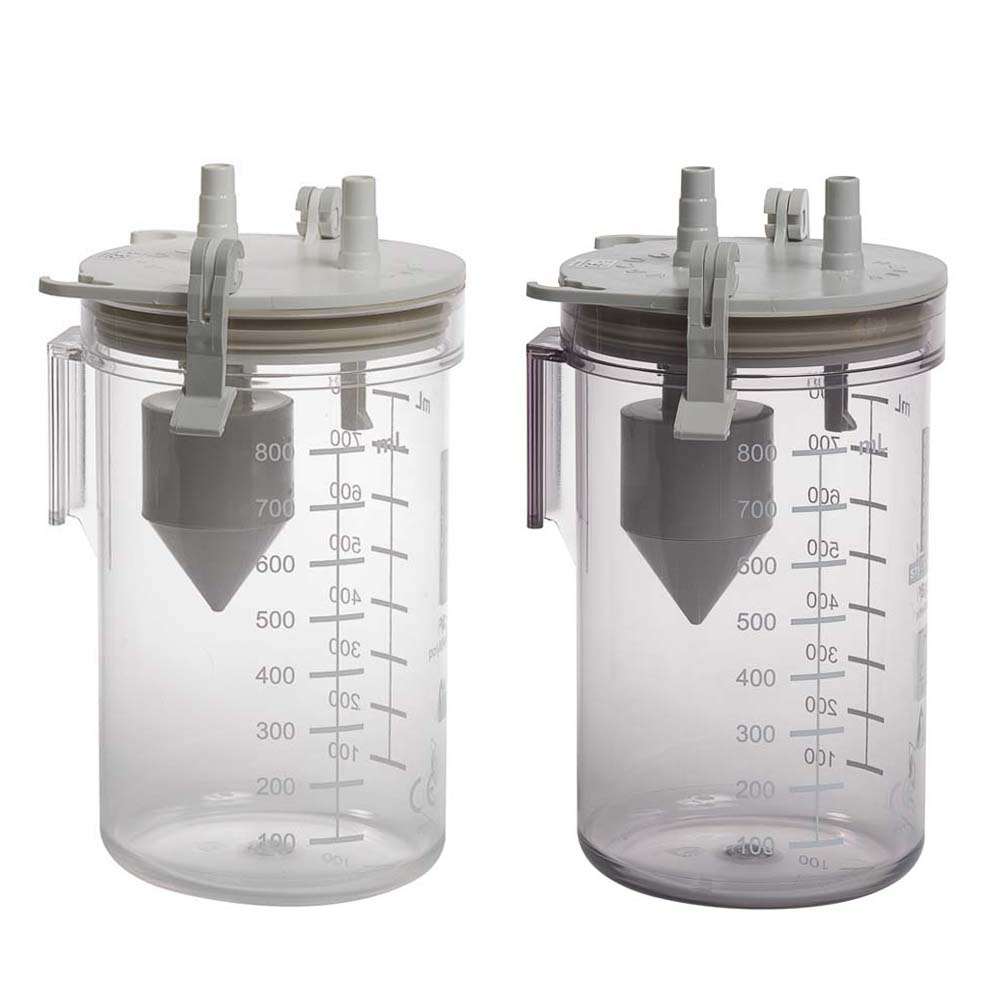

Maximum noise level: <46 ± 1,5 dB (AS) /1 m. Dual power supply and power: 100 / 240 VAC y 12 VDC. 35 W (AC) y 30 W (DC). Long battery life. LED battery level lights. Flow rate: 5 L/min (Continuos/Intermittent). Maximum vacuum: 20 kPa -150 mmHg. Collection jar with overflow safety valve in polycarbonate or polysulfone, PC1/PSU1 – PC2/PSU2 (consult more details about capacity and scale in the suction jar section). Also available with holders compatible with the main disposable canister. Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube. ON/OFF swith with moisture protection. Equipment dimensions: 395 x 160 x 250 mm (with PC1 jar) and 428 x 160 x 250 (with PC2 jar PC2). Weight: 2,5 Kg.
